200W LED Linear Light

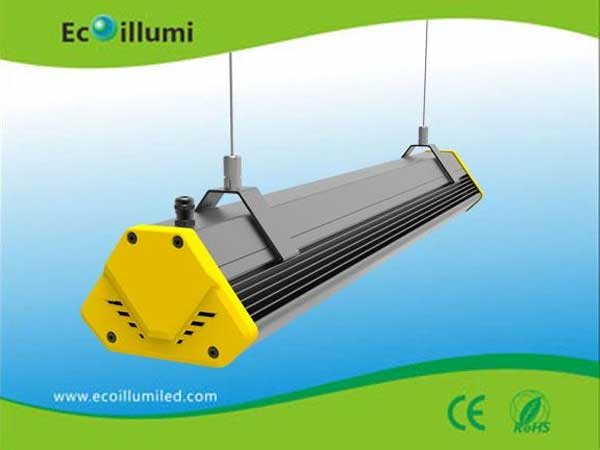

200W LED Linear High Bay Light
Product Description
1. Accurate Optical Design 120 ,60 and 90 degree,higher light efficiency with Philips 3030,
specially for warehouse aisle lighting;
2. MEANWELL Power Supply, Reliable and High Efficiency;
3. Linear heat sink design, bring more uniform heat dissipation;
4. Independent electrical cavity, provide additional protection to wire and power supply;
5. Small size,light weight,reduce transportation costs.



LED Linear High Bay 200w - 800W Incandescent Bulb Replacement

Product Information:

1.Power 200W

2. IP Rating IP65

3. Input Voltage AC100-240V

4. Product Dimension 1131*135*90mm

5. LED Chip Philips 3030 (Osram,Nichia also available )

6. Packing Dimension 1180*490*380MM

7. LED Quantity 224pcs

8. N.W 4.9KG

9. Lumen 11000LM

10. Life Time 50000Hrs

11. Beam Angle 120°/45°

12. Working Temperature -25℃ ~ +55℃

13. CRI 70/80

11. Store Temperature -45℃~+65℃(25℃ Best)

12. CCT 2700-6500K

13. Warranty 3/5 years

14. Driver CE/TUV or Meanwell

15. Certificate CE ,ROHS ,FCC

16. Power Factor >0.9

Features :

Fins design,advective holes and grooves in each fin,good for heat dissipation.

PHILIPS/OSRAM 2835 Chips, Available with high luminous flux

Constant current isolated driver, flicker-free

Wide input voltage range AC100-240V/100-277V

MeanWell&Inventronics driver,philips&Nichia LED as Lighting source

Professional light distribution technique,high light

Reflectivity reflectors,45°/90°/120°beam angle available;The lens pass rate is over 90%.

6063 brushed aluminum housing with good heat dissipation


Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.


Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings!not only LED lights manufacturer , and also LED technology solution provider !
