750W led stadium light

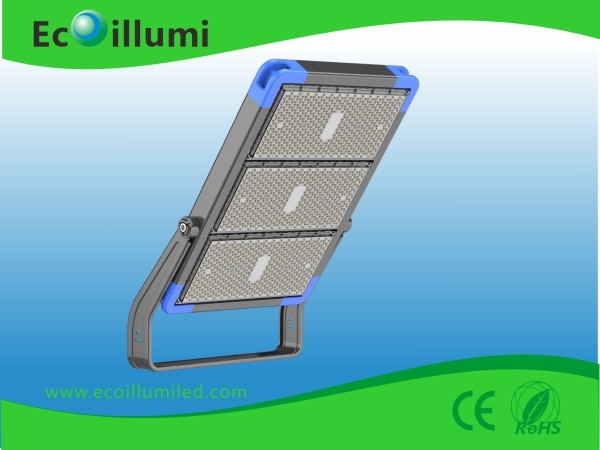

Ecoillumi LED Stadium Flood Lights 750 Watts 104590 Lumens Outdoor Super Bright Sport Court Gym Lighting 40° Beam Angle 5000K Daylight White 100-277V IP66 Waterproof Arena Lights CE,RoHS and DLC Listed


product information.jpg

Rated power : 750W

Life span : 50,000hours

Lamp bead type : SMD3030

Serial parallel : 3(42P8S)

Light effect :  140LM/W

Color temperature : 3000K-6500K

Color rendering index : more than 80

Operating Voltage : 100-277V

Driver type : No dimming 0-10v Dali dimming

Power factor : more than 0.95

Protetion class :  IP66 / IK10

Fixture size : 462x496x216

Beam angle : 25/40/60/90 multi angle optional

Light body material : Die cast aluminum lamp housing + Proof PC lens

Product Feature :

1.Extremely innovative design style, realizing assembly of 1 to 4 modules, easy assembly and maintenance process;

2.The radiator adopts 6063 aviation aluminum material, which has good heat dissipation effect;

3.The module can be rotated from 0 to 180 °, and the irradiation angle can be adjusted at will;

4. The surface of the lamp is specially sprayed with plastic, which has strong resistance to salt spray corrosion and is suitable for harsh environments;

5. Suitable for high-quality 3030 lamp beads and high-quality constant current drive, stable performance and long life; the overall protection level reaches IP66;

6. PC lens with high light transmittance, 10 ° / 25 ° / 40 ° / 60 ° / 90 ° and other light distribution angles are available, suitable for different application scenarios.


Widely used in squares, transportation hubs,  golf courses and docks;

Large stadium, all kinds of large stadium, ships, squares, docks, airports, commercial sites, overpass, outdoor advertising, landmarks and other large panoramic lighting.

company information.jpg

Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings!not only LED lights manufacturer , and also LED technology solution provider !


Company culture

Shenzhen Ecoillumi Tech Co., LTD  Ecoillumi is assembled by economic and illumination,our company hope more people use LED light , enviroment and energy saving  ,  its sleek and attractiveshape easily accentuates your decorative luminaires, making these lamps the best choice foratmospheric lighting with elegance.

Our Mission:

●Technology make the world more wonderful

Core Value:

● Honesty gratefulness Win-win cooperation

Corporate Spirit:

●Human Oriented, Grow together, pioneering enterprising, Enterprising Innovation

●Quality first, to perform and behave with integrity.

●Providing mature, Steady and high quality products to customers.

●We deliver what is promised.

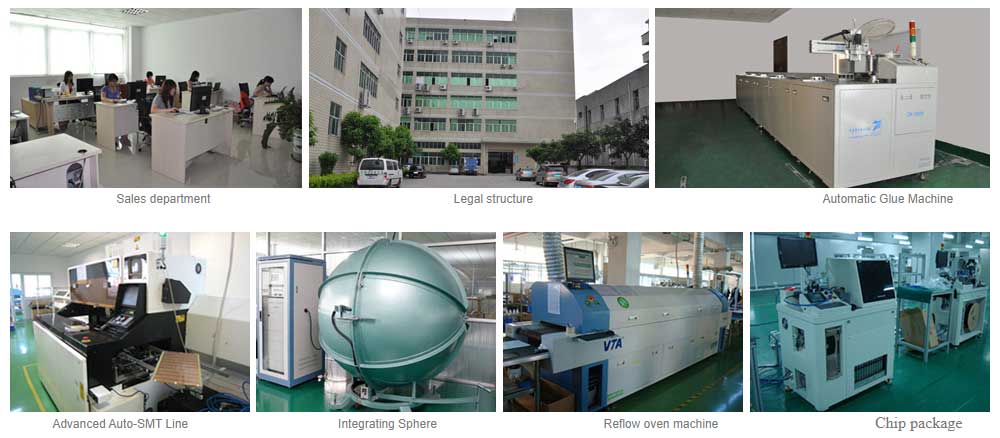

Factory information.jpg

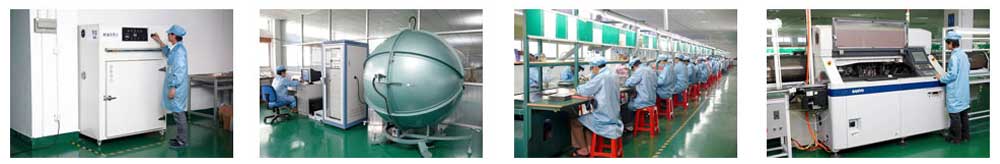

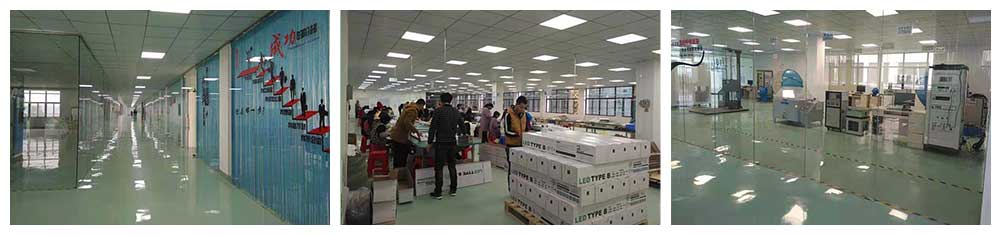

Workshop image

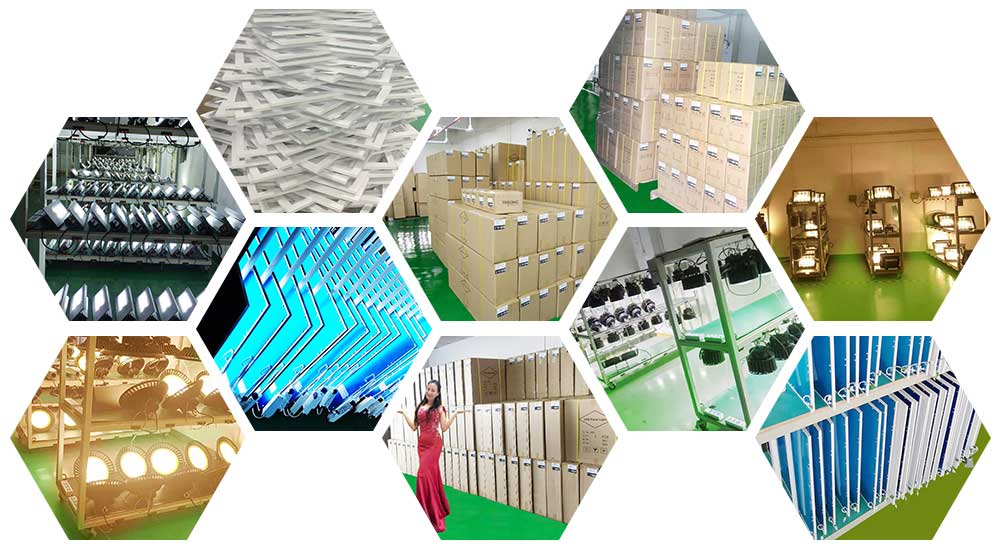

Factory photo
