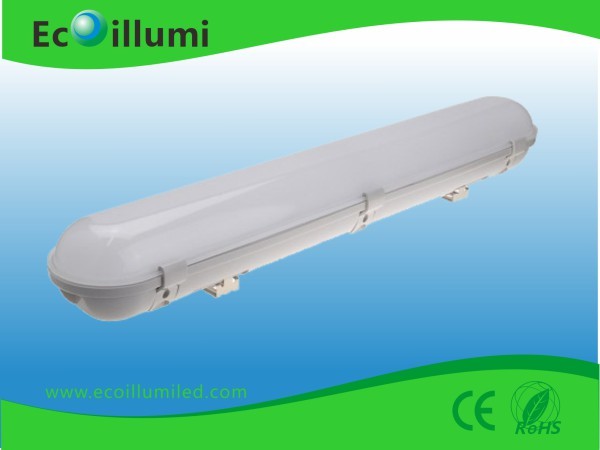

80W LED Tri-proof Light

Product Description
1.Tri-proof light is made of efficient protective material, with function of dustproof, waterproof, anti-corrosion.
2.IP rating approves IP65. It is very suitable for damp, dusty work environment. LED chip adopts Epistar, energy
efficient reach more than 70%.
3.Lamp are made of PC material and 6063 Aluminum,with high heat resistance.



80W LED Tri-proof Light

Product Information:

1. Power 80W

2. IP Rating IP65

3. Input Voltage AC100-240V

4. Product Dimension 90*1500*74MM(1.5M)

5. LED Chip 576PCS Epistar SMD2835

6. Packing Dimension 153*9.5*8CM /1PCS

7. Lumen 8200-8500LM

8. N.W 3.5KG

9. Illuminance Distribution 250-280lux 2M

10. Material PC Cover + AL PCB

11. Beam Angle 150°

12. Life Time 50000Hrs

13. CRI 70/80

14. Working Temperature -25℃ ~ +55℃

15. CCT 2800-6500K

16. Store Temperature -45℃~+65℃(25℃ Best)

17. Driver CE/TUV

18. Warranty 3years

19. Power Factor >0.9

20. Certificate CE ,ROHS ,FCC

Features :

1. IP66 water-proof, dust-proof and IK10 pressure-proof

2. Corression proof, impact resistant

3. High lumen output >100lm/W, CRI>80

4. Thickened 1.3mm aluminum housing, excellent heat dissipation

5. Constant current isolated power supply, PF>0.9

6. Long lifespan 50,000 hours

7. More than 80% saving envergy over fluorescent tubes

8. Specially used in harsh environments, such as mining area, steel plan, factory, tunnel and basement etc.


Commercial light: office, supermarket, hotel, exhibition hall , public light: residence, library, hospital, school, metro station, train station, bus station, airport etc. Industrial light: factory, warehouse etc.


Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings!not only LED lights manufacturer , and also LED technology solution provider !
